MINI-MAX Timer
The MINI-MAX is optionally available with an integrated electronic timer that is safely housed inside the pump casing. Thanks to the transparent protective cover, the status LEDs for power and alarm remain visible at all times.

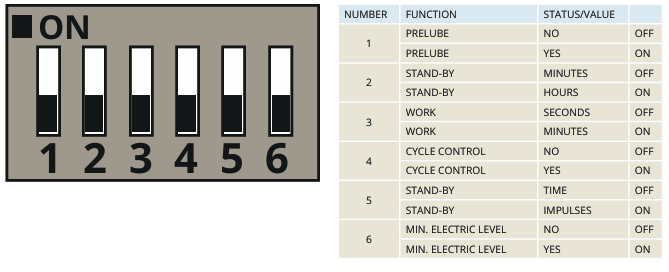

Setting the functions in the DIP switch
The electronic board is located in the pump body near the motor. For any setting operations, time variation or operations, there is no need to remove the closing wall and extract the board. You can access via the side porthole.
| Number | Function |
|---|---|
| PRELUBE ON YES | The PRELUBE ON condition identifies the function in which at every switch-off and/or power outage, the pump starts with a complete cycle identical to the one set in the selection values |
| PRELUBE OFF NO | The PRELUBE OFF condition identifies the saved work condition. In this case, at every switch-off and/or power outage, the pump picks up again from the stopping point (or stand-by) |
| STAND-BY MINUTES | Identifies the stand-by function with progression in minutes |
| STAND-BY HOURS | Identifies the stand-by function with progression in hours |
| WORK SECONDS | Identifies the work function with progression in seconds |
| WORK MINUTES | Identifies the work function with progression in minutes |
| CYCLE CONTROL OFF | The pump works only with stand-by - work time |
| CYCLE CONTROL ON | To verify proper lubrication cycle operation, check the inductive microswitch/sensor installed on a progressive divider. If the timer does not receive the signal from the inductive microswitch/sensor during the work cycle, the red LED lights up - the pumps goes into lock and sends a remote alarm signal |
| STAND-BY TIME | The stand-by time selects the waiting time between 2 cycles and can be set in 2 progressions (minutes - hours) |
| STAND-BY IMPULSES | The stand-by impulses select the function in which a signal sent from the machine is what determines pump cycle start. |
| ELECTRIC LEVEL INDICATOR ON | The minimum electric level check function is active |
| ELECTRIC LEVEL INDICATOR OFF | The minimum electric level check function is deactivated |

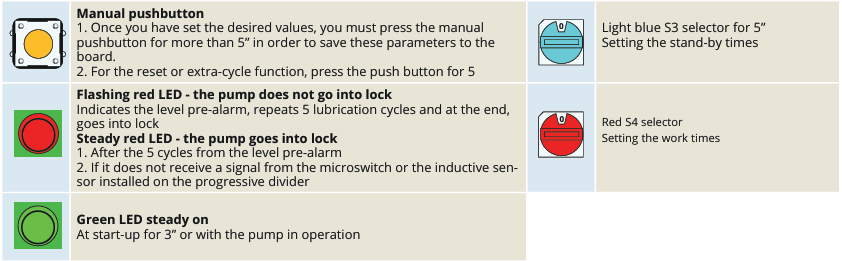

Components:

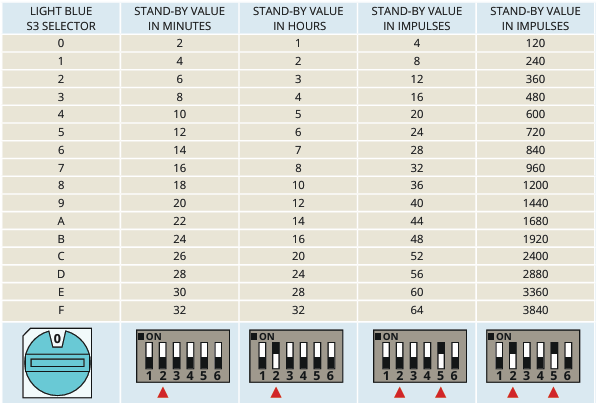

Selecting the stand-by time:
The light blue rotating selector (called S3) sets the stand-by time to use. As shown in the table, the selector must be paired with the choice of the pro gression (hours - minutes - impulses) and whether the stand-by values must be expressed in units of time and/or impulses. Make this selection using the DIP-SWITCH selector.

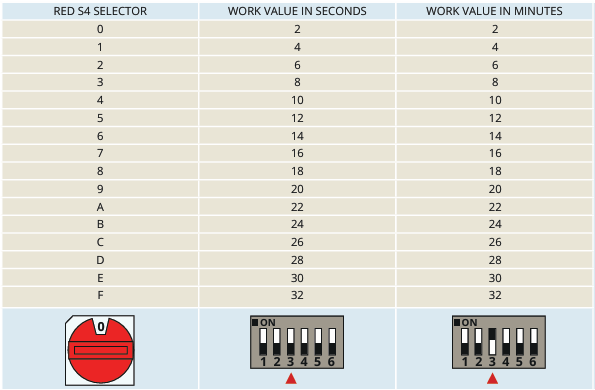

Selecting the work time:
The red rotating selector (called S4) sets the work time to use. As shown in the table, the selector must be paired with the choice of the progression (sec onds - minutes). Make this selection using the DIP-SWITCH selector.
Replacing the electronic timer:
If the timer breaks, you can replace it extremely easily.
- Remove the four screws on the rear closing cover
- Extract the electronic timer
- Unhook the external connector
- Unhook the connection connector from the internal socket
- Make the same connections to the new timer
- Put the timer back in, making sure it is inserted properly in the guide rail
- Position the closing cover and screw the four screws back in
Modify the pump from remote control to internal timer:
You can modify MINI-MAX from remote control to internal timer control by ordering the kit (code 39.PWR.74) that includes the
timer - 4-pin alarm connector - 7-pin power supply connector. To perform the operation:
- Open the rear cover
- Unhook the 4‑pin snap connector
- Put in the timer
- Replace the 4-spin connector with the 7-pin model
- Put in the M12 4‑pin circular connector
- Connect the internal terminal board and the two connectors to the board
- Close the cover back up
You can also do the operation in reverse order to switch a timer version to remote control. By ordering the kit (code 39.PWR.70)
that includes the 4-pin power supply connector. To perform the operation:
- Open the rear cover
- Unhook the 4‑pin snap connector
- Remove the timer
- Replace the 7‑pin connector with the 4‑pin model
- Remove the M12 4‑pin circular connector
- Connect the terminal board to the 4‑pin connector terminal board
- Close the cover back up
