Specifications
| Code | ILC.CSD.0200-027095 |
| Product code | 02.709.5 |
| Output (mm³/cycle) | 200 mm³ |
| Marking | 200 |
| Thread entry | M10x1 (M) |
| Thread exit | M10x1 (M) |
| Gasket | NBR |
| Material | Galvanized steel |
Dosing valve 02.709.5 for ILCOMATIC 3
Precise dosing for optimal lubrication
The 02.709.5 dosing valve is an essential component of the ILCOMATIC 3 single-line lubrication system with volumetric dosing valves. This valve is designed to deliver a precisely measured amount of lubricant to each lubrication point, ensuring continuous protection of machines and installations against wear and premature failure. Thanks to its volumetric operating principle, every lubrication point receives the same amount of lubricant regardless of its position within the system. This contributes to the reliable and efficient operation of industrial equipment.
With a dosing volume of 200 mm³ per cycle, the 02.709.5 dosing valve is particularly suitable for applications requiring precise and controlled lubrication. The fixed dosing volume ensures that bearings, guideways, chains, and other moving components always receive sufficient lubrication without wasting lubricant.
Reliable performance in industrial environments
Automatic central lubrication systems are used in a wide range of industries, including machine construction, metal processing, the food industry, paper production, and transportation applications. In these environments, consistent lubrication is essential to reduce downtime and maintenance costs.

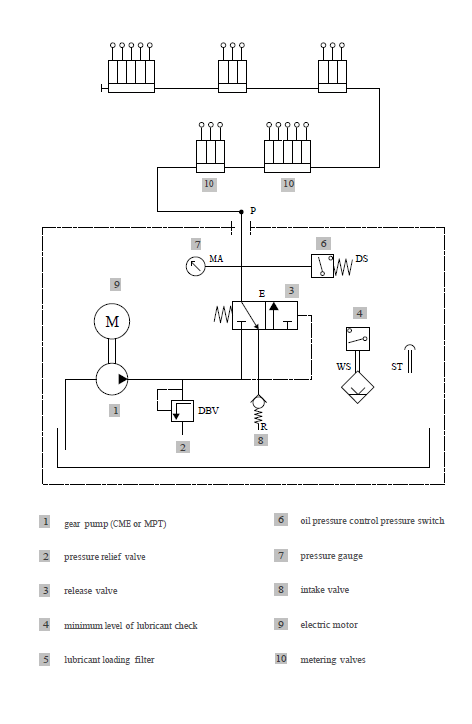

The 02.709.5 dosing valve is part of a system in which a single pump automatically supplies multiple lubrication points through a main line. This simplifies maintenance and increases operational reliability.
The compact design of the valve allows easy integration into both new and existing lubrication systems. Its robust construction ensures reliable performance under demanding industrial conditions and during long-term operation.
Benefits of the 02.709.5 dosing valve
- Precise dosing of 200 mm³ per cycle
- Suitable for ILCOMATIC 3 volumetric lubrication systems
- Reduces wear on machine components
- Extends the service life of bearings and guideways
- Helps reduce maintenance costs and production downtime
- Easy integration into single-line lubrication systems
- Reliable operation in industrial applications
Efficient central lubrication with ILCOMATIC 3
A volumetric lubrication system accurately distributes lubricant to multiple lubrication points through a single central pump and piping network. This ensures that each point receives the correct amount of oil or grease at the right time. This not only improves machine reliability but also contributes to more efficient lubricant consumption and lower operating costs.
For companies striving for maximum equipment availability, the 02.709.5 dosing valve is an important component of a professional central lubrication system.
| Technical information | |
|---|---|
| Lubricants | Oil: 32 cSt – 2000 cSt |
| Fluid greases: NLGI 000–00 | |
| Temperature | 0 °C to 80 °C |
| Seals | NBR |
| Working pressure | 15 to 50 bar |
| Maximum outlet pressure | 2 bar for a dosing volume of 200 mm³ |
| Minimum pause time | 15 s for oils with a viscosity of 32 to 250 cSt |
| 200 s for oils with a viscosity of 260 to 2000 cSt and NLGI 00 fluid greases | |
| Material | Galvanized steel |
Figure 1
When the pump is activated, pressure reaches opening (1). Due to the sealing action of the valve lip (2), the lubricant flows into chamber (3). This causes piston (4) to move and deliver the previously stored amount of lubricant from chamber (5).
Figure 2
During the pressure relief phase, piston (4), driven by the spring, returns to its original position. This movement opens the sealing valve (2), releases opening (6), and allows the lubricant to be transferred from chamber (3) to chamber (5).
Figure 3
Piston (4) has completed its full stroke. The lubricant has been completely transferred from chamber (3) to chamber (5). The sealing valve (2) has closed opening (6) again. The dosing valve is now ready for a new lubrication cycle.
L = 37.6 mm
