Bridge RH
Specifications
| Product code | 6.025.D.1R |
| Article name | Bridge RH |
| Number of elements | From 3 to 12 |
| Material | Galvanised steel Zi-Ni |
| Thread entry | 1/8" BSP (M10x1 Special Execution) |
| Thread exit | M10x1 |
| Fixing screws | M5x30 |
| Flow rate/stroke for single outlet (±10%) | 25 mm³ |
| Operation pressure | From 15 to 300 bar |
| Operating temperature | From -20° C to 100° C |
| Lubricant | Mineral oil 46 cSt - Max grease NLGI 2 |
| Control systems | Visual and electric indicating cycle and overpressure |
| Main line | Pipes Ø 8-6 |
| Secondary line | Pipes Ø 6-4 |
| Elements tightening torque | 9 Nm |
| O-rings | NBR or FPKM (on request) |
Bridge elements
The Bridge element transfers the flow rate of one or both outlets to the next element. It can be ordered with the bridge outlet enabled to the right, left or both.

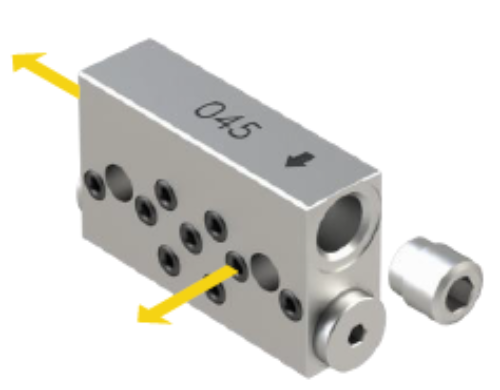

The arrows indicate the outlets connected to the next element. Assembly and/or removal take place as with a normal metering device.
