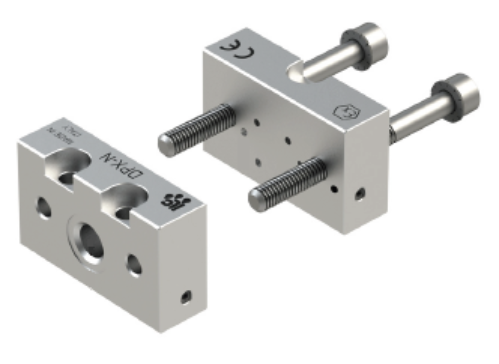

Base Structure
Specifications
| Product code | 6.1N.03 |
| Article name | Base Structure |
| Number of elements | 3 |
| Material | Galvanised steel Zi-Ni |
| Thread entry | 1/8 BSP |
| Thread exit | M10x1 |
| Fixing screws | M5x30 |
| Flow rate/stroke for single outlet (±10%) | 25 mm³ - 45 mm³ - 75 mm³ - 105 mm³ - 140 mm³ |
| Operation pressure | From 15 to 300 bar |
| Operating temperature | From -20° C to 100° C |
| Lubricant | Mineral oil 46 cSt - Max grease NLGI 2 |
| Control systems | Visual and electric indicating cycle and overpressure |
| Main line | Pipes Ø 8-6 |
| Secondary line | Pipes Ø 6-4 |
| Elements tightening torque | 9 Nm |
| O-rings | NBR or FPKM (on request) |

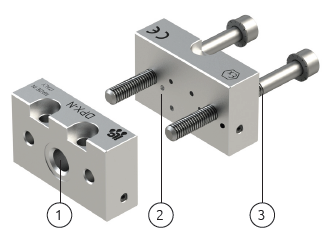

The Base Structure consists of the head segment (1), the tail segment (2) and the tie rods (3).
