PAO (oil) and PAG (grease) series pumps are pneumatically activated and are installed on systems that are provided with progressive dividers.
The pumping unit, which has a fixed or variable flow rate, is assembled un- der a plastic or metal tank having a capacity ranging between 4 and 12 litres (for oil) and 2.5/10 kg (for grease).
Specifications
| Code | 90.300.0 |
| Lubricant | Oil and grease |
| Reservoir capacity | Without tank |
| Flow rate/cycle | Adjustable |
| Flow rate | Adjustable |
| Operation pressure | 350 Bar (4950 PSI) |
| Ratio | 50:1 |
| Inlet air pressure | FROM 4 Bar (57 PSI) TO 7 Bar (114 PSI) |
| Operating temperature | FROM -10 °C TO +80 °C |
| Delivery fitting | 1/4" GAS |
| Cycles per minute | 10 Max (Oil) ; 4 Max (grease) |
| Lubricant specification | Oils 50 – 1000 cSt 40°C ; Grease Max NLGI 3 |
| Assembly | Vertical |
| Level control | Provided |
| Electric level | 1 A - 150 V AC/DC - 20 W |

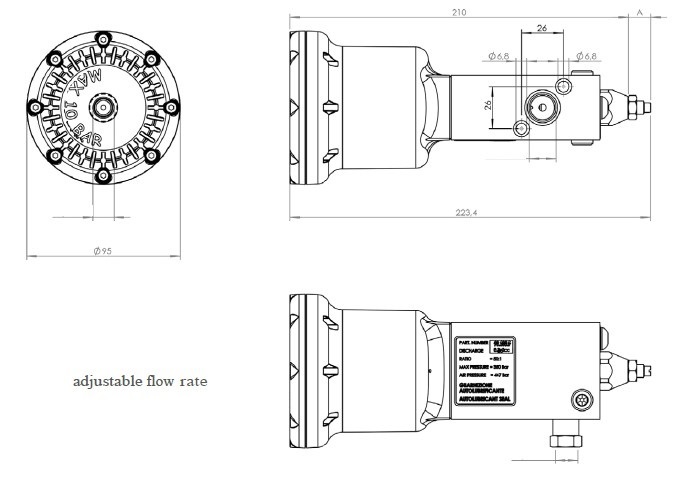

| Flow rate | A |
|---|---|
| 0.3 cm³ / cycle | 9.5 mm |
| 1 cm³ / cycle | 16 mm |
| 1.5 cm³/ cycle | 24 mm |
| 2 cm³ / cycle | 29.5 mm |
