Description

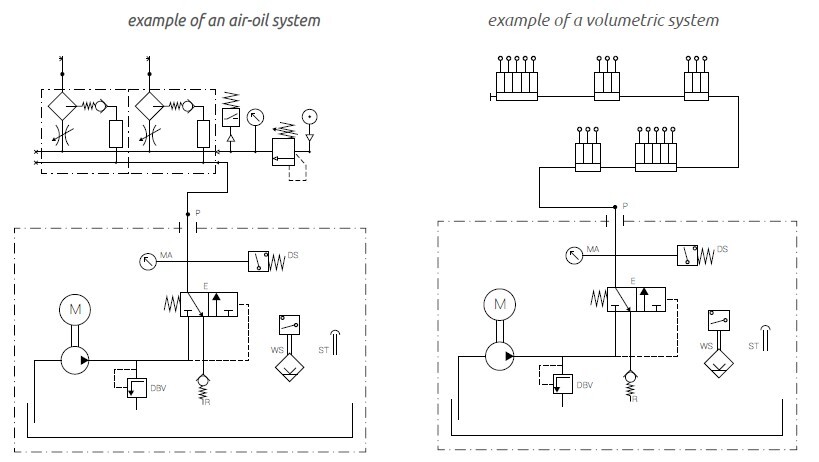

CME electric pumps have been developed for single line lubrication systems fitted with volumetric metering valves or air-oil mixers.
The unit consists of a gear pump, an electric motor, a low level switch, an electronic control card (upon request), a green LED (indicates power ON), a yellow LED (indicates pump working), a pressure gauge, a push button for intermediate lubrication and a pressure switch. Alternatively, the pressure switch can also be put at the end of the main line.
The plastic cover protects the electrical components from environmental conditions like dirt or dust. The transparent impactresistant reservoir has a capacity of 2 or 3 litres.
A set of valves which provides the decompression and bypass functions is connected to the gear pump.
The lubricants that can be used are oil with a viscosity range between 50 and 1000 cSt (CME-O) or soft grease with a NLGI consistency of 000-00 (CME-G). The two models have different sensors fitted for level control (see technical data sheet).
Operation
In order to control the system, it is necessary to alternate a working time (pump running) with a rest time (pump stopped). At the end of the rest time the pump starts and the lubricant pressure rises up to 22-30 Bar and activates the external volumetric valves or those that are integrated in the mixers (air-oil).
The pressure switch, which is activated by the oil pressure, closes the contact and indicates that the pump is working properly. If it is not activated during the working time and the contact stays open, it will send an alarm signal.
The electric level, which is open when the reservoir is empty, monitors the level of lubricant inside the reservoir. The push button can be pressed for intermediate lubricating operations. The green LED lights up to indicate that the pump is on, the yellow LED lights up to indicate that the pump is working. If there is an internal timer, that commands and controls the system, a red LED and a clean contact will indicate any faults.
| Technical data | |
|---|---|
| Reservoir capacity | 2L - 3L |
| Capacities measured (A) | 100cc/1' 50Hz ; 120cc/1' 60Hz ; 200cc/1' 24 V DC |
| Outlet connections | 2 BSP 1/4” seats (standard supplied with 1 left-hand lock cap) |
| Electrical connections | 1 cable gland for power supply ; 1 cable gland for signals |
| Filling | Cap with 200 μ load filter |
| Pressure gauge | 0 - 60 bar |
| Operating pressure | 24 bar (olie) & 30 bar (vet) |
| Lubricants | Oils 50 to 1000 cSt & soft greases NLGI 000 and 00 |
| Operating temperature | 0°C - 50°C |
| Protection rating | IP-54 |
| Weight (reservoir empty) | 3.5 kg (2L) ; 4.3 kg (3L) |
(A) performances measured with lubricant with 100 viscosity (cST) and 5 bar back pressure.
